Magnetite/concrete weights
Description
The clever COM-BI model provide a wide range of basic weights compatible with an additional 200, 400 or 600kg weight to be inserted from below.
Advantages
-
Innovative and smart
-
Extendible:
-Add-on weight 200kg for basic weights 250-400kg
-Add-on weight 400 and 600kg for basic weights 600-1800kg
-
Design in harmony with the tractors
TECHNICAL FEATURES

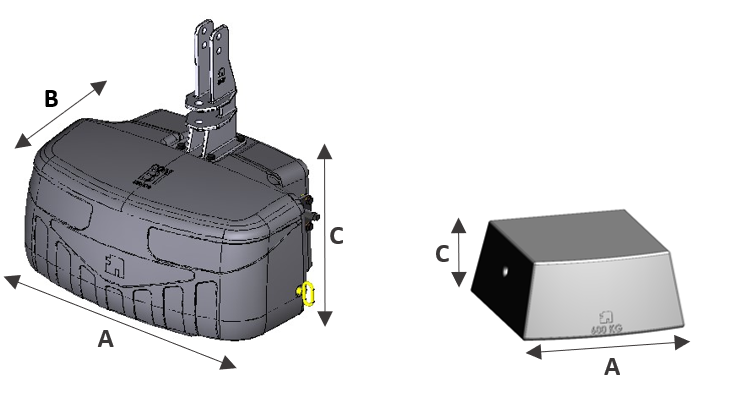

Dimensions
| Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
|
250kg 300kg 400kg |
701 |
570 |
410 |
|
ADD 200kg (Gamme Mufo-2) |
588 | 286 | 160 |
|
600kg 800kg 900kg 1000kg |
1130 |
790 |
500 |
|
ADD 400kg ADD 600kg |
601 | 620 | 280 |
|
1000kg 1200kg 1400kg 1600kg 1800kg |
1400 |
880
|
600
|
|
ADD 400kg ADD 600kg |
601 |
620 |
280 |
Standard equipment
- Front linkage mounting kit
-250, 300, 400kg weights : cat. 1 / 2
-600, 800, 1000, 1200, 1400kg weights : cat. 2
- Coupling jaw to the 3rd link
Optional equipment
- Additional weight 200kg for base units 250 to 400kg
- Additional weight 400 and 600kg for base units 600 to 1400kg
→ Additional weights to be inserted from below & attached by pin (male parts)
Tractor-compatible
